SPM-007- Pine tree straight ditch

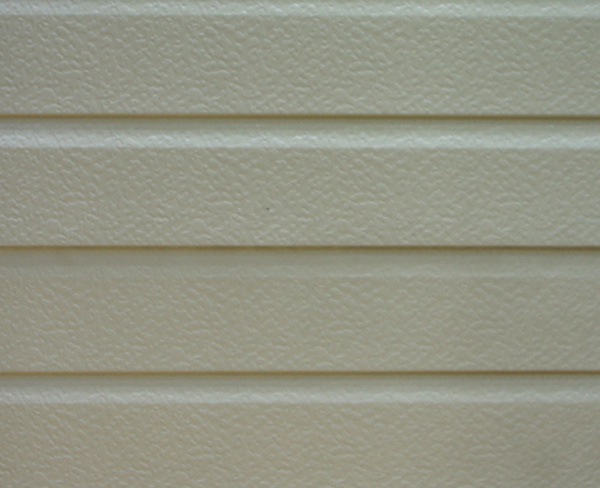

Turpentine wood straight ditch ---Bark grain exterior wall fire insulation decorative panel
The metal carved board of wood veneer grain is mostly used in the exterior wall insulation decoration system of light steel villas and guard boxes. Because its appearance has a relief wood veneer texture, the appearance after installing the wall resembles a wooden house, but it is more thermal insulation than a wooden house, and it is also fireproof and moisture-proof than a wooden house. There are two products of imitation wood veneer grain metal carved board, one is aluminum-zinc plated color steel plate (such as: angel white, slightly purple yellow, etc.) Before roll forming, it will first pass through the metal embossing machine to form a texture similar to wood veneer on the steel plate. The other is to use an aluminum-zinc color steel coil with a log pattern sprayed in advance (the surface of the color coated steel coil itself is a pattern that has been sprayed with wood), and then processed into the grain of wood veneer through a metal embossing machine.
3D relief bark pattern light steel villa metal carved board, guard pavilion exterior wall decorative insulation board, dry hanging fireproof insulation sandwich wall panel, polyurethane fireproof insulation decorative integrated board, metal exterior wall insulation decorative board!
Brand: Shandong Qigong
Fire rating: B2 (can be customized B1 class)
Unit: square meters
Flower type: veneer grain
Minimum batch: 100 sq.m
Color: Monochrome (natural color of galvanized steel plate or natural color of wood)
Structure: Aluminum-zinc plated color steel plate + polyurethane + aluminum foil
Standard size (L*W*D): 3800mm*380mm*16mm
Fire rating: ordinary civil and enterprise projects can choose B2 grade; For municipal projects, if there are special needs, B1 level can be customized according to requirements.
Pattern: This is a veneer grain metal carved board, there are two finished products, one is aluminum-zinc plated color steel plate (such as: angel white, slightly purple yellow, etc.) Before roll forming, it will first pass through the metal embossing machine to form a texture similar to wood veneer on the steel plate. The other is to use a pre-sprayed log pattern of aluminum-zinc color steel coil (the surface of the color coated steel coil itself is a pattern that has been sprayed with wood) and then processed into the grain of wood veneer through a metal embossing machine.
Color: There is only one color, which is the color or pattern of the color steel plate itself. Wood-grained metal carved boards generally do not need to be coated. Wood veneer grain insulation decorative panels are mostly used in light steel villas and guard boxes.
Color difference: The following sample colors may be inconsistent with the actual product color due to different hardware parameters of the display device, so the final color is subject to the actual product.
Product size: The product width is 380mm or 383mm, which varies according to the interface, but the length and thickness of the product can be customized.
Shandong Qigong Environmental Protection Technology Co., Ltd. is mainly engaged in sales: production and sales of monitoring equipment, auto maintenance equipment, paint spraying and baking equipment, industrial coating equipment, environmental protection materials, thermal insulation materials, composite materials, automotive accessories, environmental protection technology research and development, services, Promotion and utilization; environmental assessment and information consulting services; environmental supervision services; environmental engineering design; design, construction, sales, operation and management of environmental governance facilities.
Packaging and shipping
light steel villas, activity room sentry boxes, steel structure workshops, green wooden houses, container houses, environmental protection toilets, substation rooms, old building renovation, interior decoration, etc
